2x32x1RU (WP-FN-32-N-1-F-SAC120)

2x32x2RU (WP-HN-32-N-1-F-SAC120)

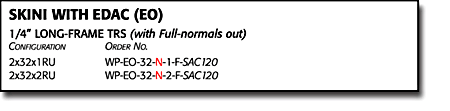

The four 120-pin (SAC120) configuration is typically supplied for EO normalling schemes.

N = Grounds not bussed. Replace with B in Order No. for bussed grounds.





Mating Connectors, Pins & Cables

The four 56-pin (SAC) configuration is an option for FN, HN, NN normalling—you get 16 jacks per connector instead of 32. Replace SAC120 with SAC56 when ordering.
