2x48x1RU (WP-HN-48-N-1-F-SAC90)
Most common.

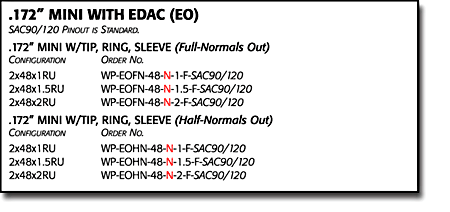

These connectorized MINI (TT/Bantam) panels incorporate EDAC multi-pin connectors. Notice that there is a variety of backplate configurations that are typically used for these systems based on the normalling that is required. See the highlights at right or call us for details. MINI w/EDAC (EO)



2x48x1RU (WP-EOHN-48-N-1-F-SAC90/120)

Back to top

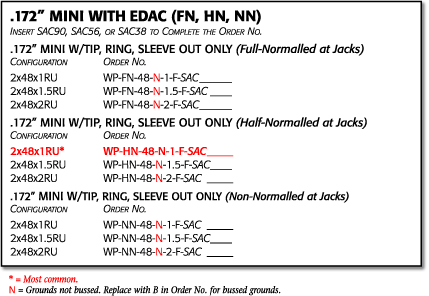

N = Grounds not bussed. Replace with B in Order No. for bussed grounds.

2x48x1RU (WP-HN-48-N-1-F-SAC56)
EDAC6x56

2x48x1RU (WP-FN-48-N-1-F-SAC38)
EDAC8x38







EDAC Connectors & Cables, etc.


Pinout Configurations

EDAC
highlights

• Unless otherwise specified, four 90-pin female connectors (SAC90) will be supplied on the rear of all units.

• Other options for MINI patchbays include six 56-pin (SAC56) connectors or eight 38-pin connectors (SAC38).

• Standard Audio Configuration (SAC) is the most common pinout used for EDAC connectors and will be supplied unless otherwise specified.

• “48P” Group Spacing is standard. “48E” and “48S” Spacing can be provided—specify when ordering. Just call.
