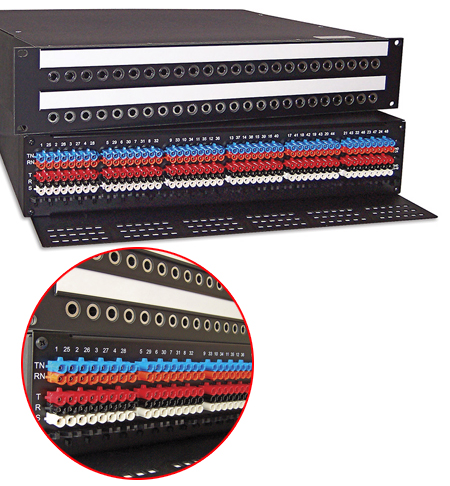

2x24x2RU (WQP-01-E-C-24-N-2)
Self-contained. Most common.

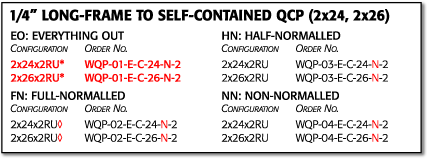

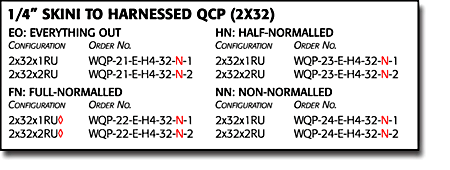

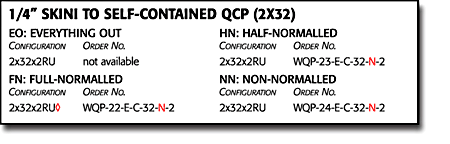

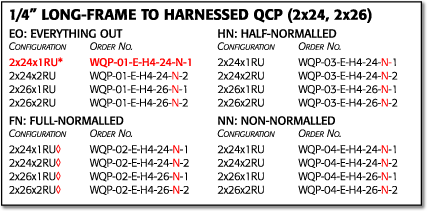

Our pre-wired patching systems are all constructed to your specifications using our in-house manufactured panels and jacks. Like the MINI pre-wired panels, these 1/4” Long-Frame and streamlined SKINI patchbays can be pre-wired to ADC QCP Ultra-Patch punchdown backplates, with either a self-contained chassis (14” deep) or harnessed (4-foot cable provided), using your choice of normalling. Digital units are also available, typically in full-normalled configurations as indicated below. QCP-Harnessed Product List



1/4” QCP
highlights

• Self-contained units available in 2RU (3-1/2”) panel only.

• Standard cable length between panel and backplate is 4 feet; any length can be provided. Call factory.

• Unless otherwise specified a 4-line designation strip is supplied on all 2RU (3-1/2”) panels.

• ADC Ultra-Patch backplates require a punchdown insertion tool (Order No. QB-2). Replacement tips are available (Order No. QB-2T).

• Belden wire used for all analog and digital units.110 ohm cable supplied for digital.

• If you have a special need, we’ll design and wire a panel to any specifications. Just call.

Normalling
info

• EO(01)=Tip, Ring, Sleeve and normals brought out to backplate, everything out.

• FN(02)=Tip, Ring, Sleeve only out to backplate, full-normalled at jacks.

• HN(03)=Tip, Ring, Sleeve only out to backplate, half-normalled at jacks.

• NN(04)=Tip, Ring, Sleeve only out to backplate, non-normalled at jacks.


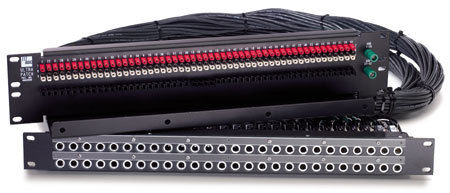

2x26x1RU (WPD-02-E-H4-26-N-1)
Harnessed.

Back to QCP Self-contained









QCP
highlights

• The photo above shows the ADC Punchdown Tool (Order No. QB-2).

• Wire your panel using AWG 22, 24, or 26 solid or stranded wire.

• We recommend using the same AWG wire type on each terminal.

• Maximum two wires per terminal.

Normalling
info

• EO(01)=Tip, Ring, Sleeve and normals brought out to backplate, everything out.

• FN(02)=Tip, Ring, Sleeve only out to backplate, full-normalled at jacks.

• HN(03)=Tip, Ring, Sleeve only out to backplate, half-normalled at jacks.

• NN(04)=Tip, Ring, Sleeve only out to backplate, non-normalled at jacks.
