List Price: $996.002x48x1.5RU (Order No. WDBP-9615-SH)
TRS out only to DB25 Female Connectors;
Quick Switch™ Normalling. Digital Ready.

WDBP-961-SH

List Price: $1198.00 2x48x1RU (Order No. WDBP-961-SH)
Digital Ready, Most Common.

The next generation of Shorti Patchbays has arrived; this 2x48 audio patchbay is wired to DB25 connectors. This unit features exceptional flexibility with the Audio Accessories, Inc. exclusive Quick-Switch normalling system located on the rear of the panel. The Quick-Switch normalling allows you to set the individual normals on a per jack pair basis. This enables you to full-normal (FN), half-normal (HN) or non-normal (NN) by sliding the switches into the appropriate position. You also have grounding options: isolated, bussed, or grounds vertically strapped (GVS). More info...




2x48 to Sub-D 25-Pin
This 1RU (13⁄4”) panel has two rows with 48 MINI jacks in each row. Tip, Ring, and Sleeve only of all jacks are wired out to 25-pin Sub-D connectors (8 jacks in each). Normals are strapped internally. This unit integrates well with ProTools.

WP-FN-48-N-1-F-DB25F (Full-Normalled) $1196.00
WP-HN-48-N-1-F-DB25F (Half-Normalled) $1138.00
WP-NN-48-N-1-F-DB25F (Non-Normalled) $1080.00




2x24 to Sub-D 25-Pin
This 1RU (1-3/4”) panel has two rows with 24 Long-Frame jacks in each row. Tip, Ring, and Sleeve only of all jacks are wired out to 25-pin Sub-D connectors (8 jacks in each). Normals are strapped internally. This unit integrates well with ProTools.

WP-FN-24-N-1-F-DB25F (Full-Normalled) $678.00
WP-HN-24-N-1-F-DB25F (Half-Normalled) $649.00
WP-NN-24-N-1-F-DB25F (Non-Normalled) $616.00





DL MAXI
Twenty-four Long-Frame jacks mounted in each row of a 1RU (1-3/4”) two-row panel, with Tip, Ring, and Sleeve only out to the DL connectors. This unit is available in a full- or half-normalled configuration.

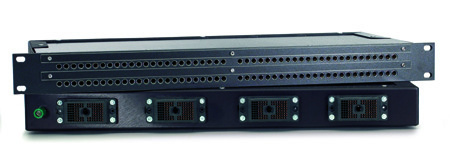

DL MINI
Available in 2 rows of 48 MINI jacks mounted on a 1RU (1-3/4”) panel, with Tip, Ring, and Sleeve only out to the DL connectors. Again, any normalling type can be supplied.




Pinout Configurations

Cannon DL
highlights

• Popular with facilities that have SSL consoles.

• Typical Cannon units are equipped with DL96R connectors. Others are available. Consult factory.

Sub-D
highlights

• We can make your patchbay with just about any Sub-D connector you want—9, 15, 25, 37, 50 or 78. You tell us, we’ll make it.

• Shown at left are a couple of options we’ve manufactured to customer specifications.
